Shandong Better Onward Machinery Co., Ltd.

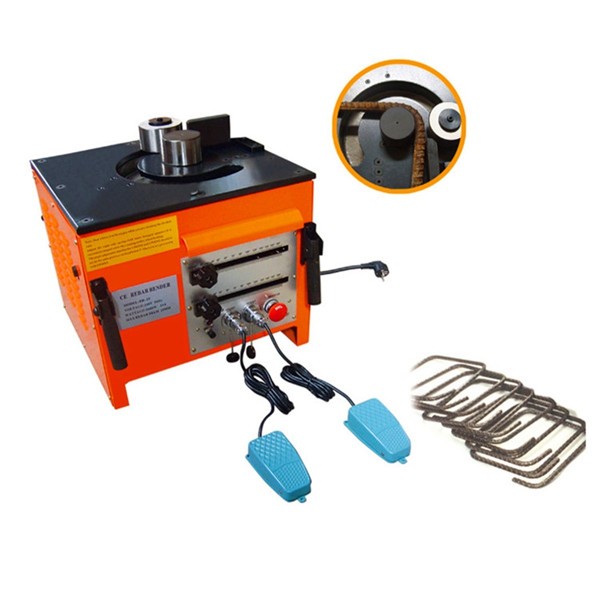

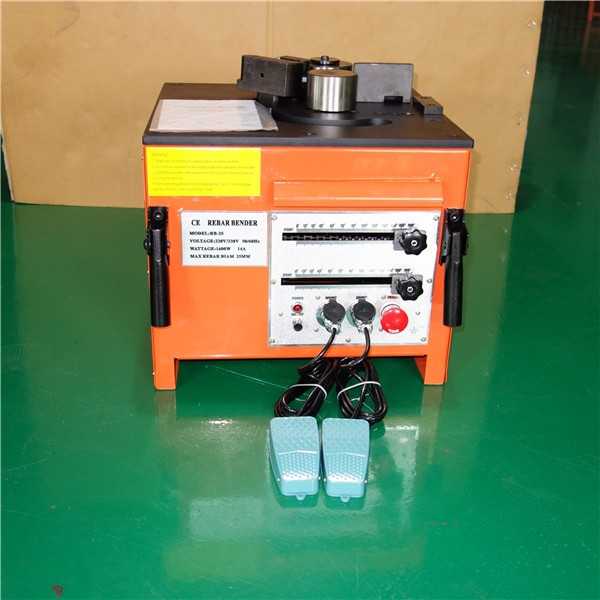

Introduction of RB-25 Rebar Bender
RB series Rebar Bender can preset angle locks by angle setting valve.
The two slide-type angle selectors (point1/ point2) can be set to accurately bend any angle from 0-180 degrees.
Two standard foot pedal control switch for hands-free bending.

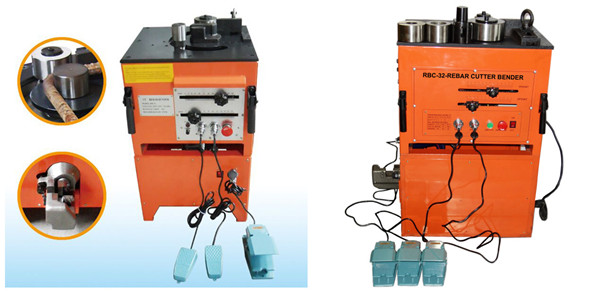

RBC series Rebar bender and cutter, combination cutting and bending function, improved the process efficiency of steel bar.
Bending machine with mechanical transmission, reliable and easy maintenance.
It can preset the bending angle by angle adjuster ( Point1, Point2) and then precisely bend to any angle from 0 to 180 degrees by freely operate two feet switches.
Cutting machine with hydraulic drive,foot switch control operation, with 5 seconds cut off.
Parameter of RB-25 Rebar Bender

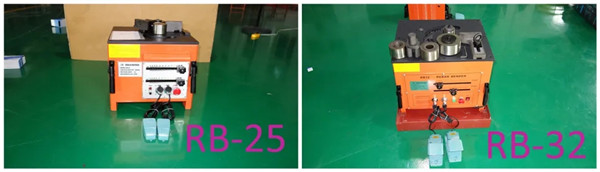

| Model | RB-25 | RB-32 | RBC-25 | RBC-32 |
| Voltage (V) | 220V/ 110V | 220V/ 110V | 220V/ 110V | 220V/ 110V |
| Wattage (W) | 1600W/1700 W | 2800W/3000 W | 1600W/1700W | 2800W/3000W |
| Min. Bending Diameter (mm) | 6 mm | 6 mm | 6 mm | 6 mm |
| Max. Bending Diameter (mm) | 25 mm | 32mm | 25 mm | 32mm |
| Bending Angle (°) | 0-180° | 0-180° | 0-180° | 0-180° |
| Bending Speed (Sec) | 6-7s | 7-8s | 6-7s | 7-8s |
| Machine Dimensions(L*W*H) (mm) | 450*500*440 mm | 600*580*470 mm | 500*450*790 mm | 600* 580* 980 mm |
| Outer Packing Size (mm) | 500*555*505 mm | 650*650*730 mm | 570*480*980 mm | 650* 650* 1100 mm |
| Net Weight (KGS) | 91KG | 175KG | 136KG | 225KG |
| Gross Weight (KGS) | 109KG | 203KG | 167KG | 260KG |
| Package | Inner cartons packing, Outer metal box packing | |||
| Certification | CE ROHS | CE ROHS | CE ROHS | CE ROHS |
