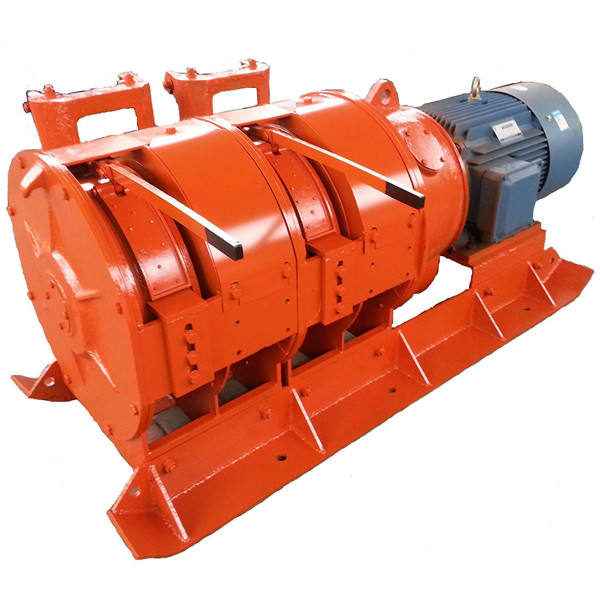

2JP-15 Electric Double Drum Scraper Winch

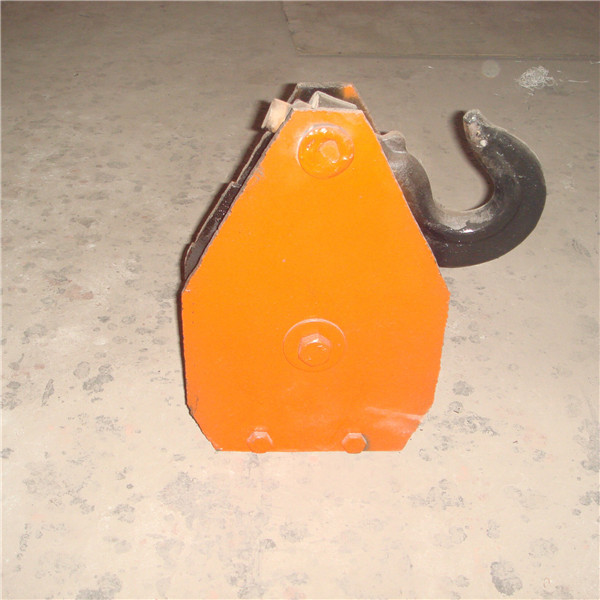

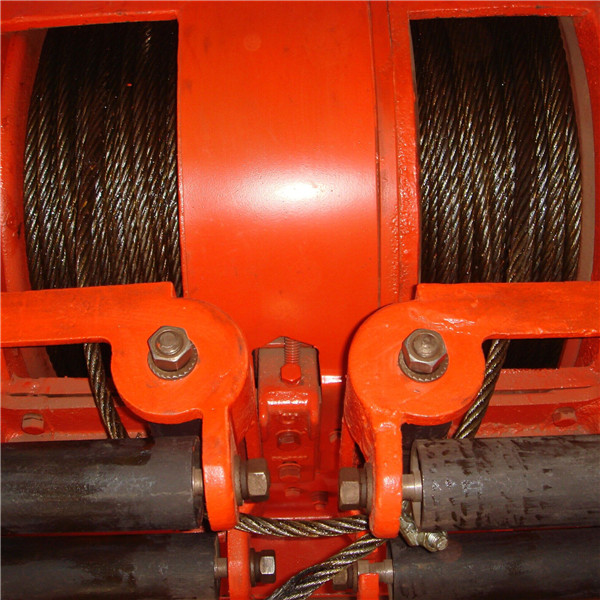

Introduction of Double Drum Scraper Winch

2JP series scraper winch use in metal mine, match with normal motor.

2JPB series scraper winch use in coal mine, match with explosion proof motor.

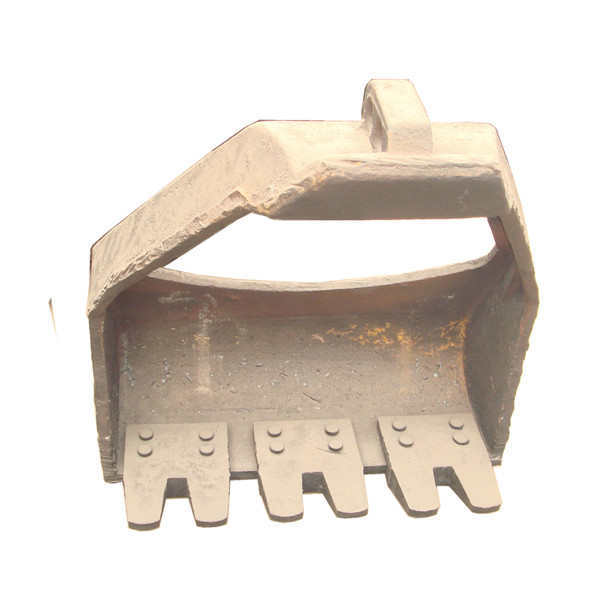

Scraper winch use for ore's carrying and filling working, is applicable to scraping which horizontal type or not more than 44 degree inclined slope.

Parameters of Double Drum Scraper Winch

Item		Unit	Model
			2JPB-7.5	2JPB-15	2JPB-22	2JPB-30	2JPB-55
			2JP-7.5	2JP-15	2JP-22	2JP-30	2JP -55
Main Steel wire rope 's average Pulling Force		N	≥8000	≥14000	≥20000	≥27500	≥44000


Average speed	Main wire rope	+/-5%m/s	1	1.1	1.2	1.2	1.2

	Vice wire rope	+/-5%m/s	1	1.5	1.6	1.6	1.8

Steel wire rope's diameter	Main wire rope	mm	9.3	12.5	14	15.5	18.5

	Vice wire rope	mm	9.3	11	11	14	16

Drum	Diameter	mm	205	225	280	280	350
	Width	mm	80	125	160	160	180
Rope capacity	Main wire rope	m	45	80	80	80	100

	Vice wire rope	m	45	100	100	110	130

Motor	Power	Kw	7.5	15	22	30	55
	Rotate speed	r/min	1440	1460	1470	1470	1470
Dimension	Length	mm	1210	1525	1600	1650	2070
	Width	mm	565	660	730	820	1010
	Height	mm	490	620	640	700	890
Weight		KG	390	660	980	1155	2125
