Introduction of High pressure Injection Packer
Details:
1. high quality dense aluminum rod with high pressure resistance.
2. Rubber: large elasticity, strong toughness, high expansion rate.
3. Smooth thread, easy to screw and easy to construct.
4. Injector/ Nipple: integrated cutting, with steel balls in the mouth to prevent liquid to backflow.
Application
1. Plugging and sealing construction of cracks, expansion joints, construction joints and structural joints of various buildings and underground concrete works.
2. Drilling retaining wall plugging and reinforcement of geological drilling engineering.
3. For water conservancy and hydropower projects, the reservoir dam body grouting, water conveyance tunnel crack plugging and seepage prevention, and the seepage prevention and reinforcement of dam concrete cracks.
4. Subway, tunnel, culvert, sewage treatment tank, concrete crack leakage, water plugging.
5. The basement, underground garage, underpass and concrete cracks are leaking and blocked with water.
6. Cracks in roof concrete slab, through wall pipes, wall corners, water leakage and plugging with water.
7. Cracks in concrete structures, beams, columns and plates shall be injected with epoxy resin under high pressure.
Parameter of High pressure Injection Packer
| Model | Size ( Length* width * drill diameter) |
| SL-8 | 80* 13.5* 14mm |
| SL-10 | 100* 13.5* 14mm |
| SL-15 | 150* 13.5* 14mm |
| SL-20 | 200* 13.5* 14mm |
| SL-25 | 250* 13.5* 14mm |
| SL-30 | 300* 13.5* 14mm |
| SL-40 | 400* 13.5* 14mm |
| SL-50 | 500* 13.5* 14mm |
| SL-100 | 1000* 13.5* 14mm |
| SL-C8 | 80* 9.5* 10mm |
| SL-C10 | 100* 9.5* 10mm |
| SL-T8 | 80* 12.7* 13mm |
| SL-T10 | 100* 12.7*13mm |

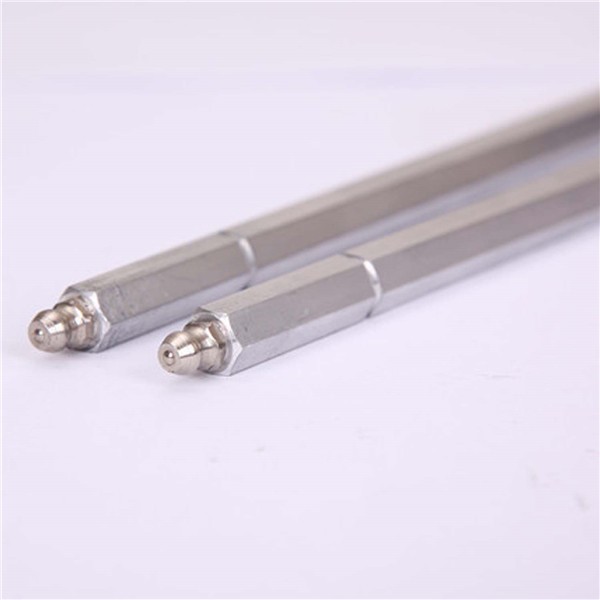

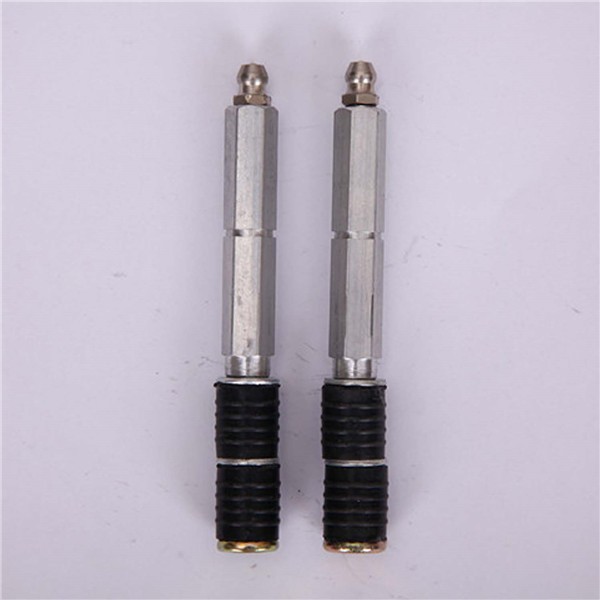

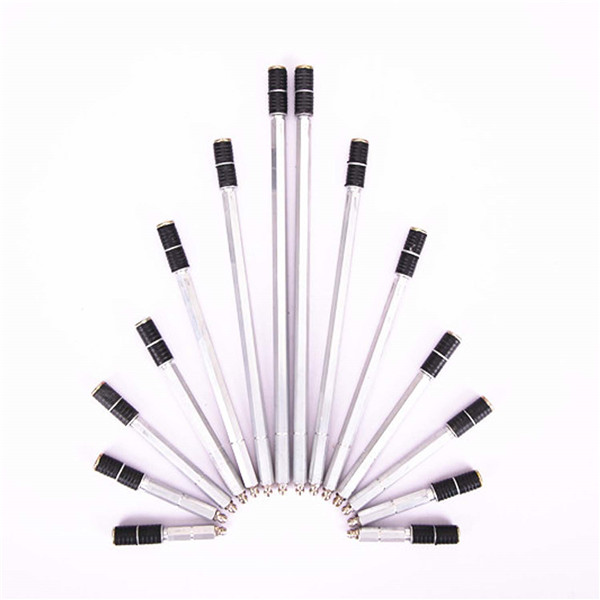

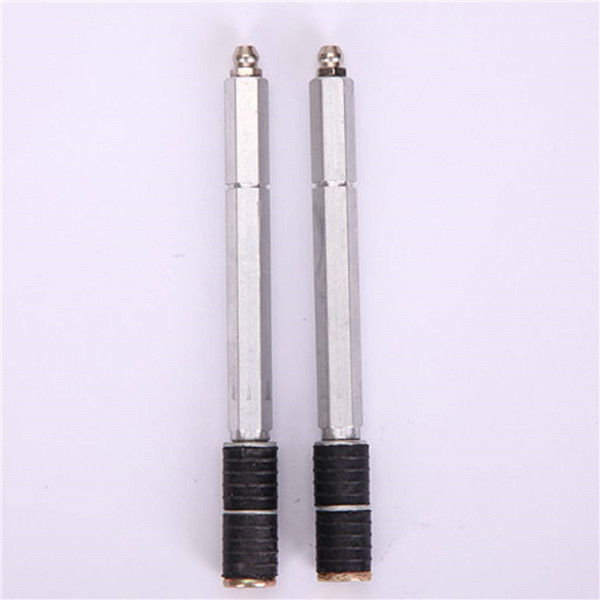

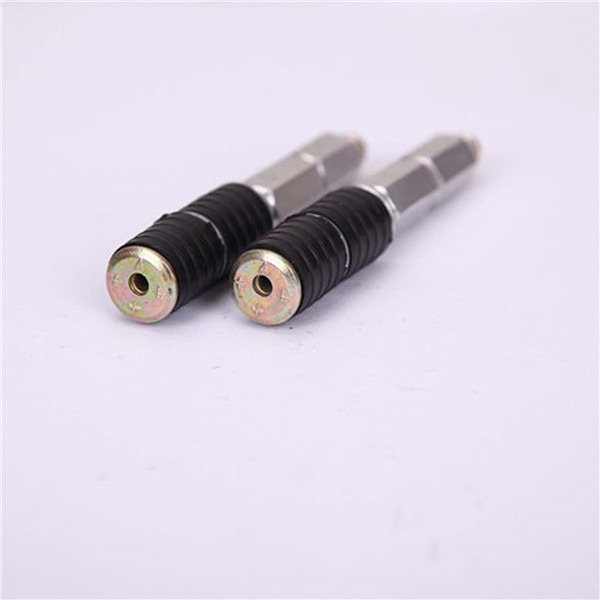

Images of High pressure Injection Packer
