Introduction of Spraying Machine
Our Spraying Machine is applicable to expansion joint water leakage, settlement joint water leakage, subway water leakage, tunnel water leakage, dam water leakage, floor / crack / hollowing reinforcement, indoor and outdoor spraying, cement mortar spraying, dry powder mortar spraying, putty powder spraying, waterproof grouting and waterproof surface spraying, waterproof material spraying, ceiling spraying, wall spraying, coating spraying, garden spraying, relief effect coating spraying, handicraft spraying, emulsion paint, real stone paint, rockery spraying, The sculpture spraying, sound-absorbing materials spraying.

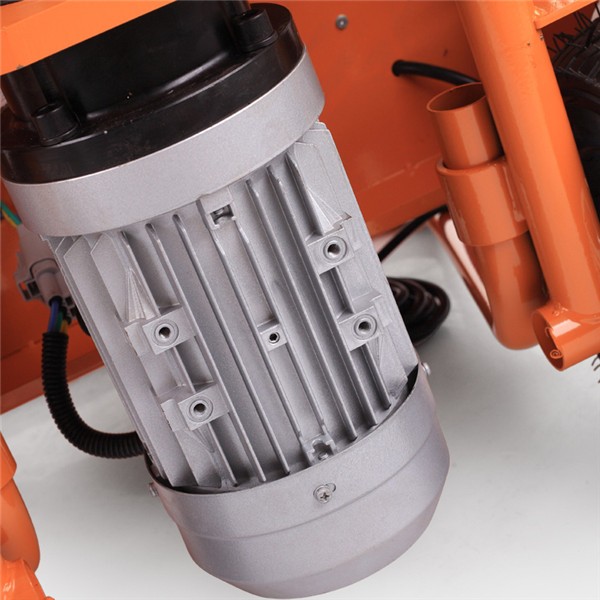

1. 3000W Brushless all copper motor
2. Front wheel universal wheel configuration, 360 degrees free movement.
3. Rear wheel inflatable wheel configuration, easier to move.
4. Intelligent control system, gas stop, gun spraying stop.
5. Imported following parts from Germany, it can spray lacquer for more than 30000 square meters.
Parameter of Spraying Machine
Model | D-9 |
Rated Voltage | 220V 50Hz |
Rated Power | 3000w |
Max. Flow rate | 20L/min |
Max. Adjustable pressure | 45kgs |
Conveying pipe burst pressure | 120kgs |
Vertical feeding height | 30m |
Applicable material | Real Stone Lacquer Paint, water sand coating, Putty powder, caulking plastering gypsum,latex paint,Leveling mortar,Bonding mortar,Diatom mud painting |

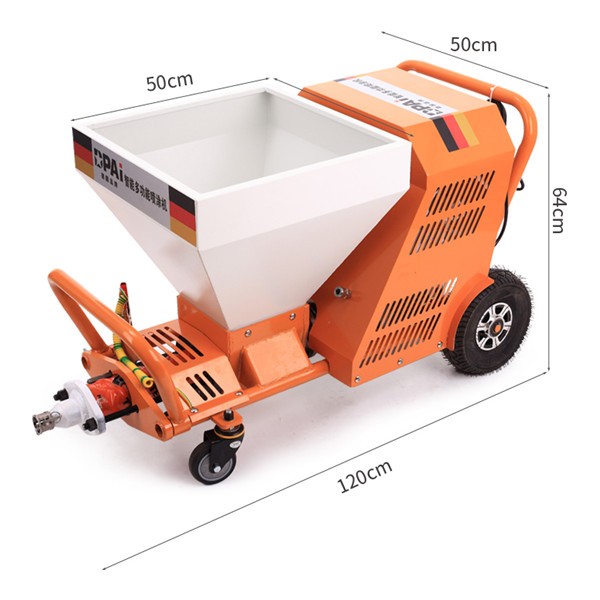

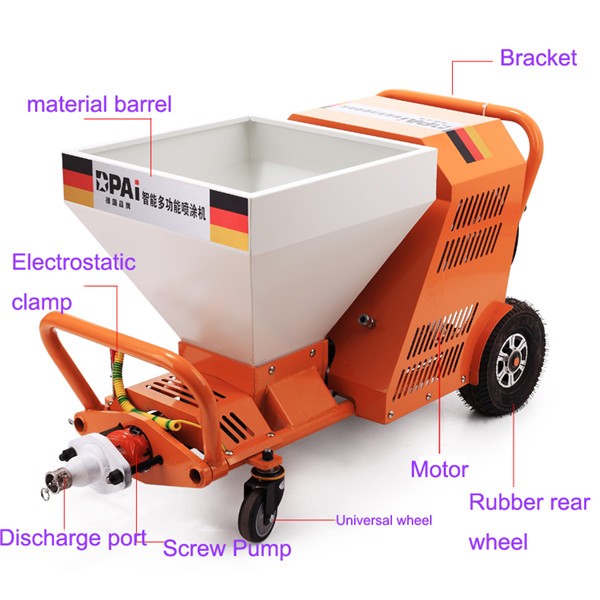

Images of Spraying Machine
