Introduction of Spraying Machine
Our Spraying Machine is applicable to expansion joint water leakage, settlement joint water leakage, subway water leakage, tunnel water leakage, dam water leakage, floor / crack / hollowing reinforcement, indoor and outdoor spraying, cement mortar spraying, dry powder mortar spraying, putty powder spraying, waterproof grouting and waterproof surface spraying, waterproof material spraying, ceiling spraying, wall spraying, coating spraying, garden spraying, relief effect coating spraying, handicraft spraying, emulsion paint, real stone paint, rockery spraying, The sculpture spraying, sound-absorbing materials spraying.
The spraying material shall not exceed 2mm.
Parameter of Spraying Machine
| Model | D-1 |
| Rated Voltage | 220V 50Hz |
| Rated Power | 1600w |
| Max. Flow rate | 12L/min |
| Max. Adjustable pressure | 30kg |
| Conveying pipe blast pressure | 120kg |
| Vertical feeding height | 10m |
| Applicable material | Waterproof materials, putty powder, thin fireproof materials which particles less than 2mm |

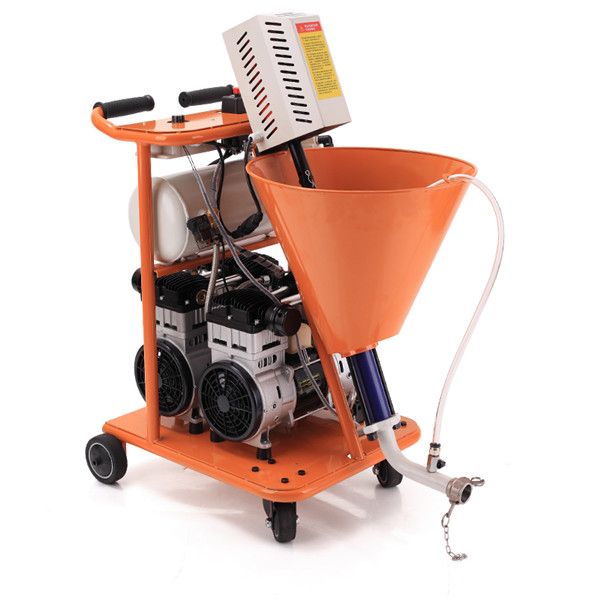

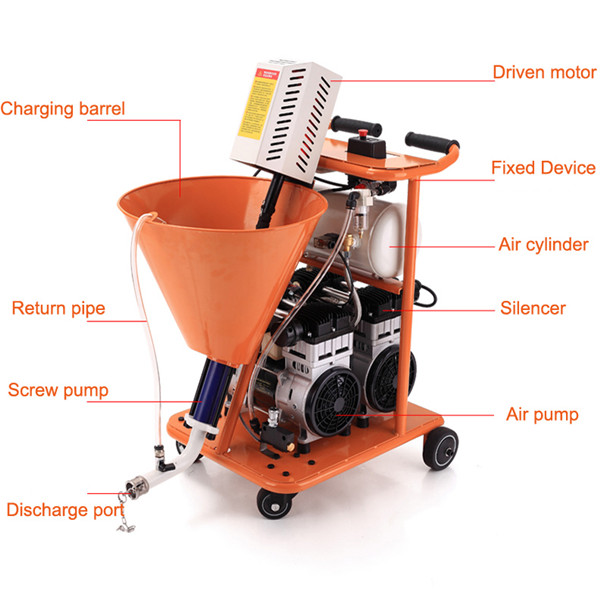

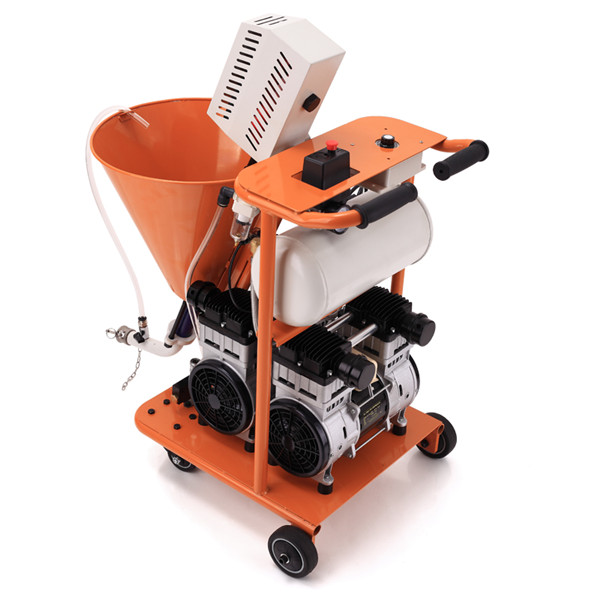

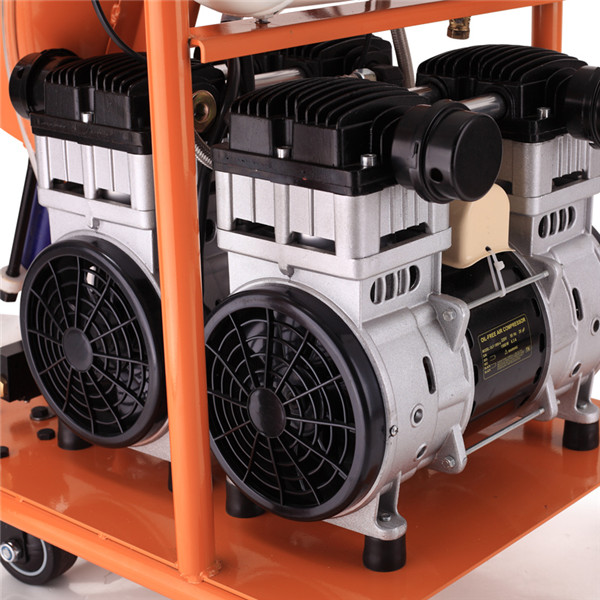

Images of Spraying Machine
