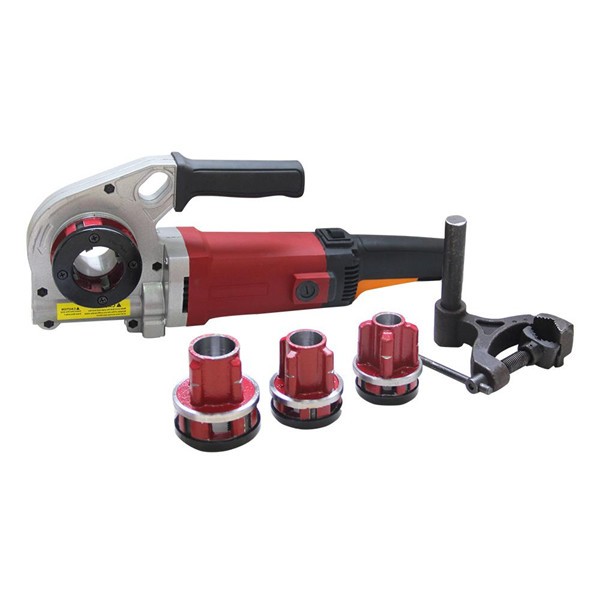

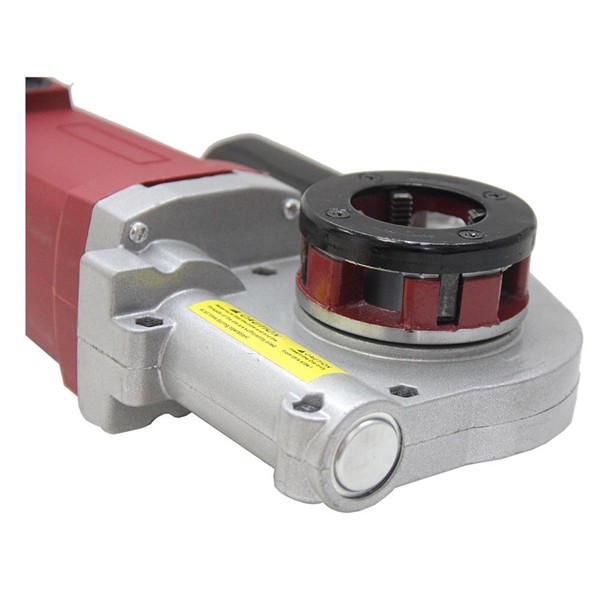

Portable Gmte-03 Electric Heating pipe Water pipe Gas pipe Threading Machine

Introduction of Pipe Threading Machine

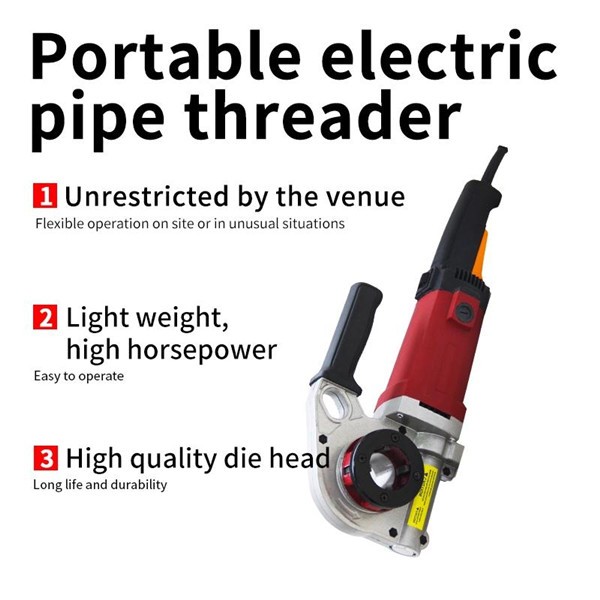

Characteristics:
1. Unrestricted by the venue
Flexible operation on site or in unusual situations
2. Light weight, high horsepower
3. Long lift and durable
Application: Heating pipe, water pipe, Gas pipe and other pipe.
Parameter of Pipe Threading Machine

Model	GMTE-02	GMTE-03
Voltage	230V 50Hz/ 120V 60Hz	230V 50Hz
Power	1400W/ 12A	2000W
Speed	24r/min	28r/min
Thread processing range	from 1/2" to 1 1/4"	from 1/2" to 2"
Package size	55 * 28.5* 28cm	64* 17* 35cm
Gross weight/ Net weight	22.4/ 21.8kg	23.5/ 22.8kg

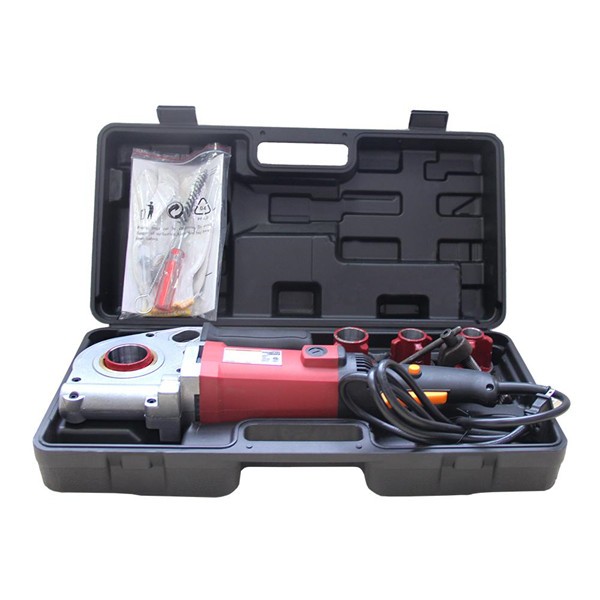

Configuration	4 dies heads+ oil gun+ gloves + hex wrench+ carbon brush + holder+ instructions	6 dies heads+ oil gun+ gloves + hex wrench+ carbon brush + holder+ instructions
Attachments	Orange, red 2 colors random delivery	Red

Size	Model	Tube inner diameter size (mm)	Tube outer diameter size (mm)	inch
4 points	DN15	15	22	1/2
6 points	DN20	20	27	3/4
1 inch	DN25	25	34	1 inch
1.2inches	DN32	32	42	1 1/4
1.5inches	DN40	40	48	1 1/2
2 inches	DN50	50	60	2inches
