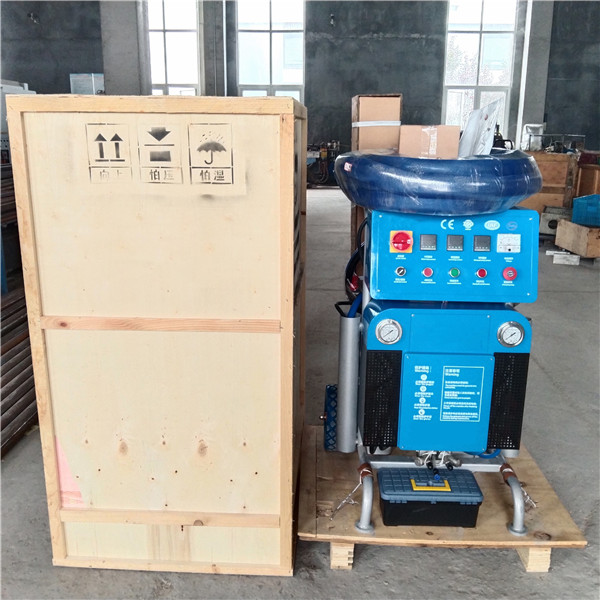

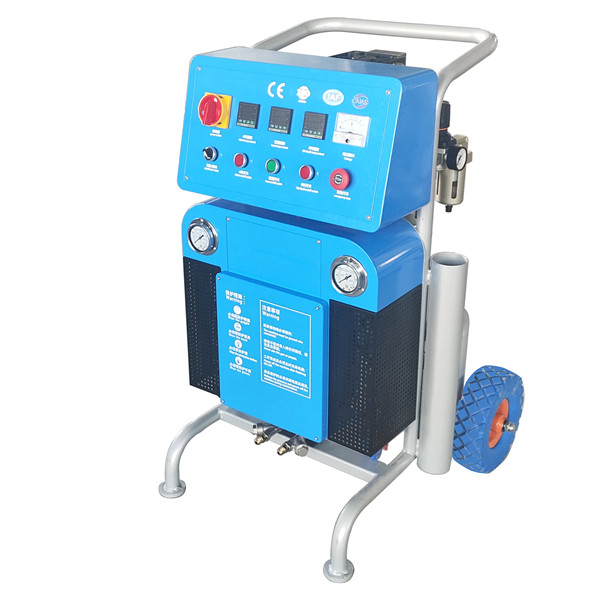

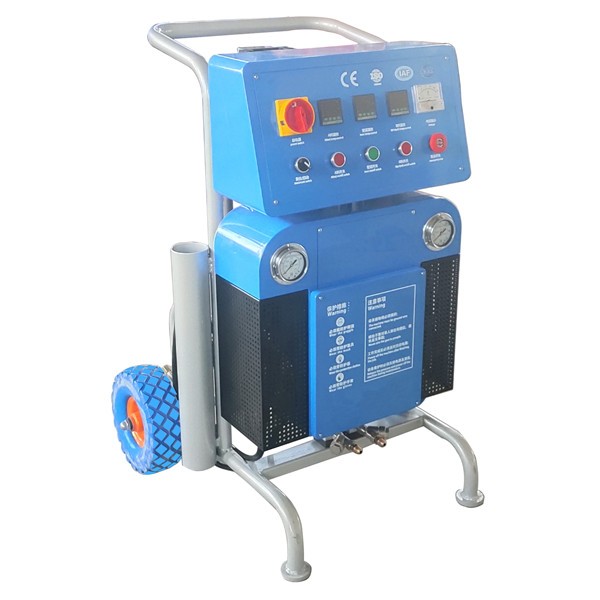

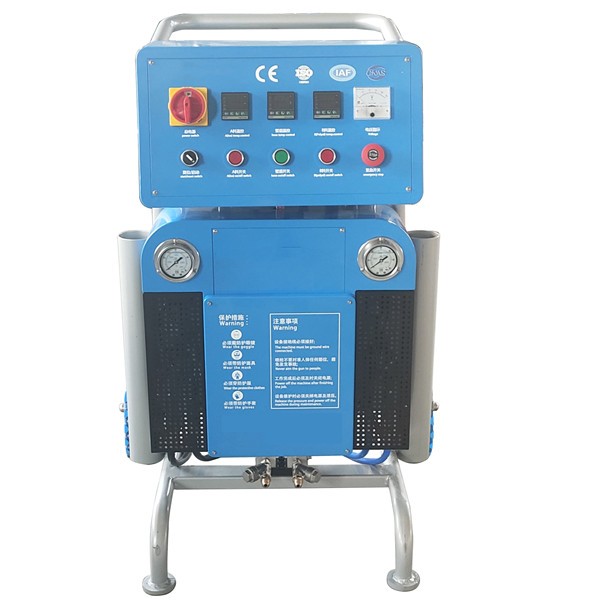

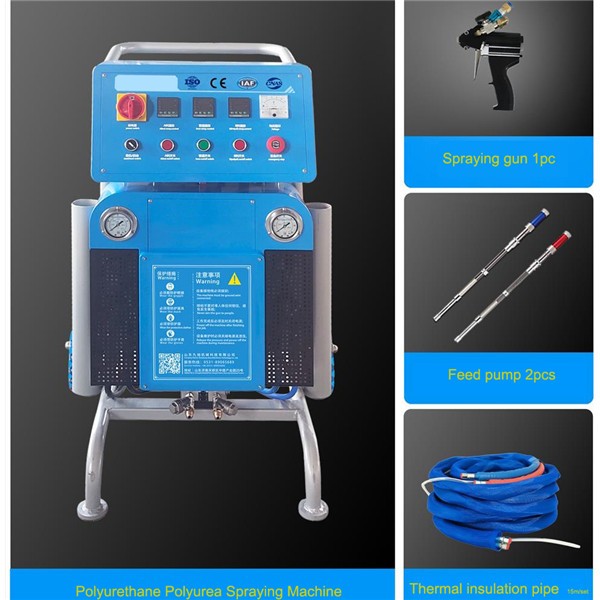

Q30 Pneumatic Polyurea Coating Polyurethane Foam Spraying Machine

Introduction of Polyurea and Polyurethane Spraying Machine

1. Our products gained CE certification.

2. It can be used for polyurea spraying, rigid foam polyurethane spraying, all water polyurethane spraying, polyurethane casting and other materials.

3. Pneumatic drive
Pneumatic pressurization design is adopted, with light weight, compact structure and convenient movement.
4. The cylinder and solenoid valve adopt the international brand "airtac" products, with low gas consumption, strong power and low failure rate.

5. The main electrical components adopt "people's electrical appliance" brand products, with low failure rate and durability.

6. The heating pipeline adopts domestic well-known brands, which has the characteristics of high pressure resistance, corrosion resistance, high temperature resistance, uniform heating and fast heating.

7. High power heating system
380V heating system, heating fast and fast, and normal construction in cold season.

8. Low failure rate of spray gun

The spray gun has the characteristics of small volume, light weight and uniform spraying.
The mixing chamber and friction pair are made of alloy steel, with good wear resistance and durability, reducing maintenance and maintenance costs.
Parameter of Polyurea and Polyurethane Spraying Machine

Product name	Polyurea and Polyurethane Spraying Machine
Model	Q30
Power source	380V
Total power	15.5kw
Heating power	15kw
Air source	0.5-1Mpa ≥1m3/min
Driven type	Air driven
Max. Output pressure	28Mpa
Material proportion	1:1
Material output	2-10kg/min
Insulation pipeline	Supporting 90m
Net weight	112kgs
