Y32s Hydraulic Flexible Wire Hose Crimping Machine with Hand Pump

Y32s Hydraulic Flexible Wire Hose Crimping Machine with Hand Pump

Product Item:


  • Product Detail
  • FAQs

Introduction of Crimping Machine
Y32S is a manually operated hydraulic crimping machine for repair workshop.
This hand-operated movable crimper works even in places where electricity or compressed air are not available.
Y32S is simple in construction, easy to operate and highly reliable.
Its ergonomic design,efficient and fast pump and impressively high crimping force makes it ideal crimper for field service.
Parameter of Crimping Machine

ModelY32S hose crimper
Crimp head materialforge steel (Cr40)
Crimping range

3-61mm

 (1/8"-2 3/8")

Max. Hydraulic Hose

1 1/2", 4SP

 (ID 38mm)

Opening without Dies96mm (3 4/5")
Accessible Diameter90mm (3 1/2")
Max. Opening+21mm (5/6")
Master Die Length70mm (2 3/4")
System pressure31.5Mpa
Max. Crimping force1370KN (137T)
Motor powerHand pump
Standard voltageNone
ControlManual
Standard dies8sets
Weight135kg
L x W x H550* 280* 550mm

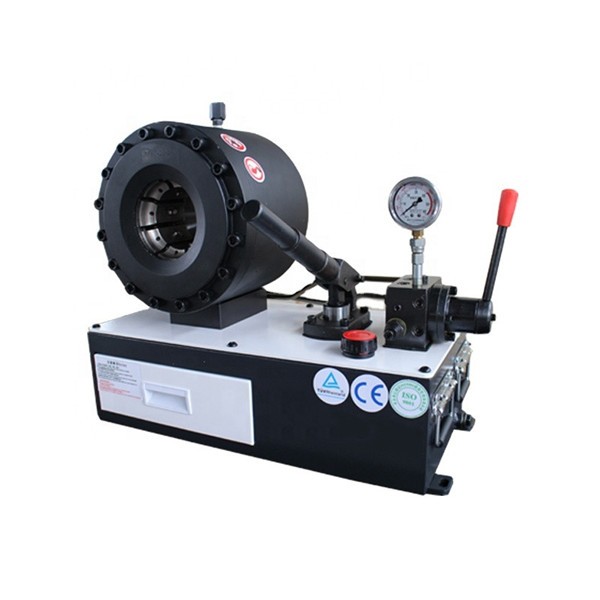

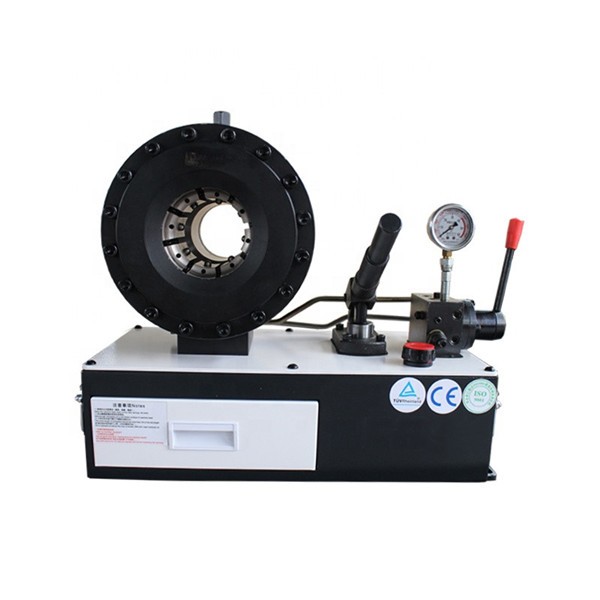

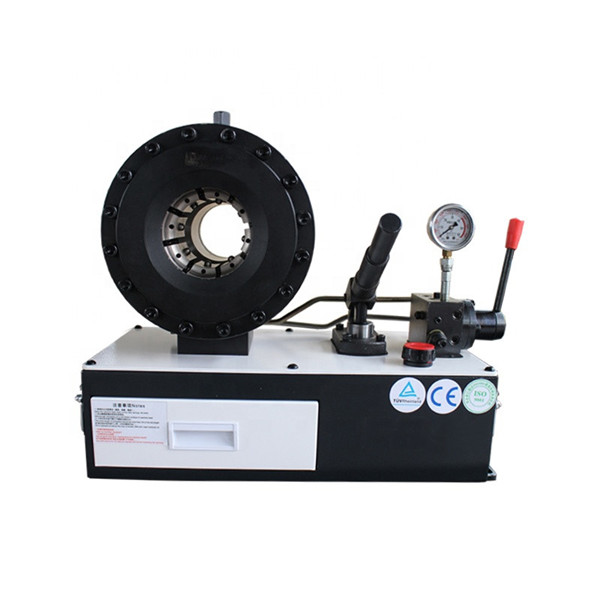

Picture of Crimping Machine
