Introduction of Air Mucking Loader
ZQ-26 Air mucking loader is applicable to mine's horizontal tunnel to digging, especailly is applicable to underground mine which has much water and which has Flammable gases.
ZQ-26 air mucking loader is bucket type, front loading and back uploading;
Walking: rail wheel type, rail gauge is 600mm, 762mm, 900mm.
Power source: compressed air
Parameter of Air Mucking Loader
Bucket volume:0.26+/- 0.026m3 | Production capacity: 50-60m3/h |
Walking Motor power:≥9kw | Bucket motor : ≥15KW |
Working pressure: 5*105 - 6.68*105Pa | |
Max.Air consumption: 8-12M3/min | Speed: 1.14m/s |
Loading width: 2.7m | upload height:≥1.25m |
upload distance:≥ 0.42m | rail gauge: 600mm |
overall size:(Working state) ≤ 2375*1380* 2240mm | |

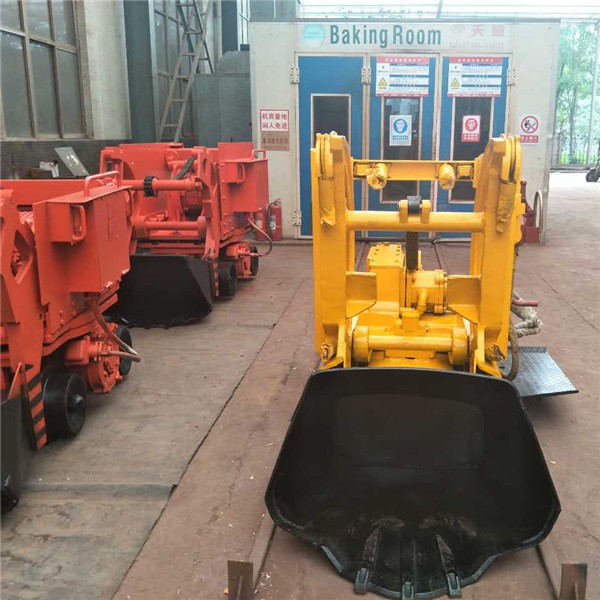

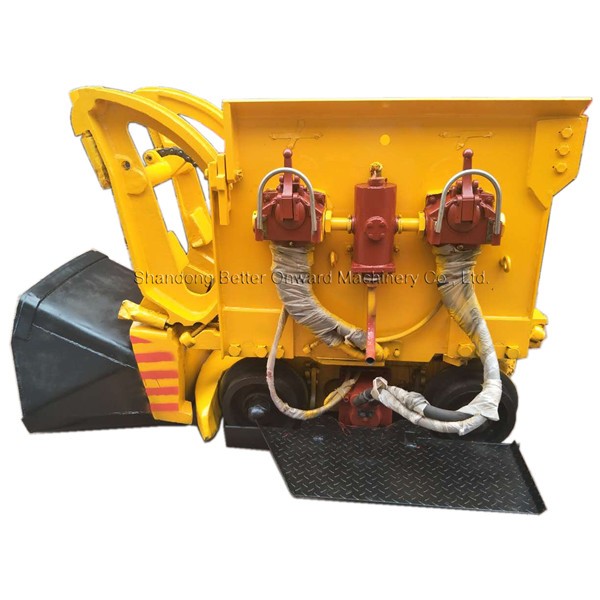

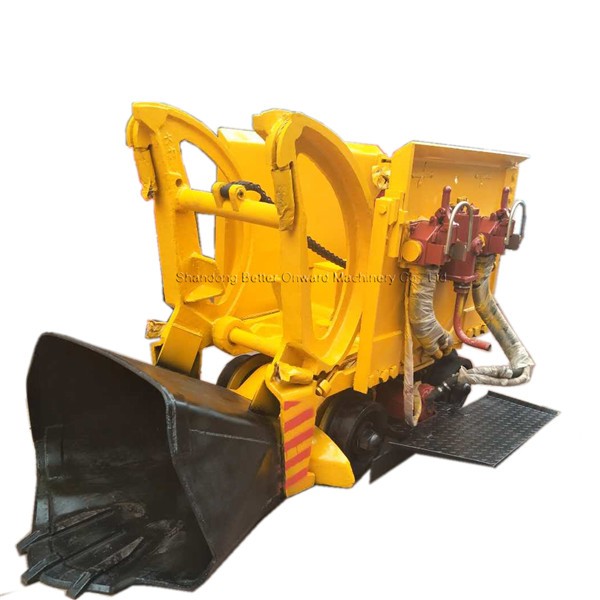

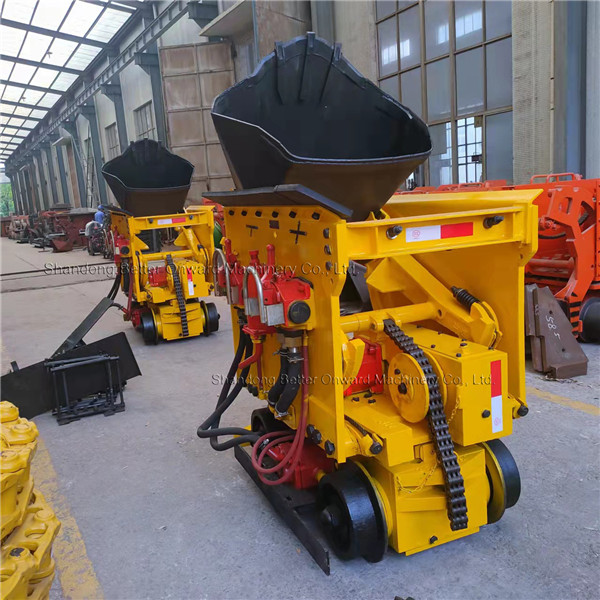

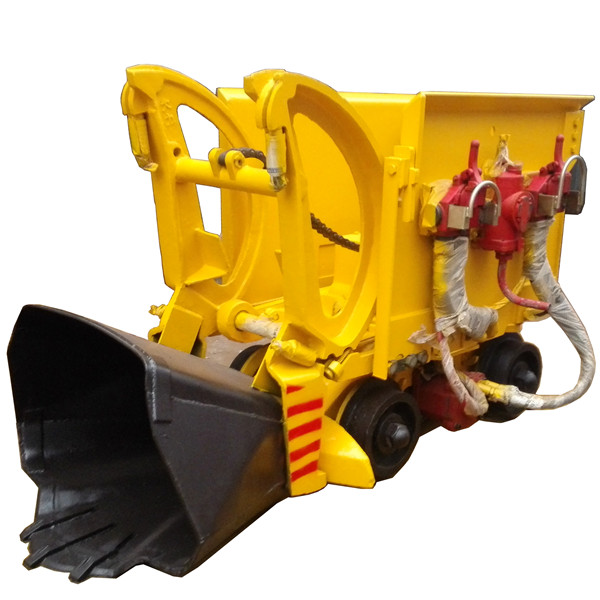

Images of Air Mucking Loader
