Introduction of RBC-25 Rebar Bending and Cutting Machine
RBC-25 Rebar Cutting and bending machine, combination cutting and bending function, improved the process efficiency of steel bar.
Bending machine with mechanical transmission, reliable and easy maintenance.
It can preset the bending angle by angle adjuster ( Point1, Point2) and then precisely bend to any angle from 0 to 180 degrees by freely operate two feet switches.
Cutting machine with hydraulic drive,foot switch control operation, with 5 seconds cut off.
Parameter of RBC-25 Rebar Bending and Cutting Machine
| Model | RBC-25 |
| Voltage (V) | 220V/ 110V |
| Wattage (W) | 1600W/1700 W |
| Min. Bending Diameter (mm) | 6 mm |
| Max. Bending Diameter (mm) | 25 mm |
| Bending Angle (°) | 0-180° |
| Machine Dimensions(L*W*H) (mm) | 500*450*790 mm |
| Outer Packing Size (mm) | 570*480*980 mm |
| Net Weight (KGS) | 136KG |
| Gross Weight (KGS) | 167KG |
| Package | Inner cartons packing, Outer metal box packing |
| Certification | CE ROHS |

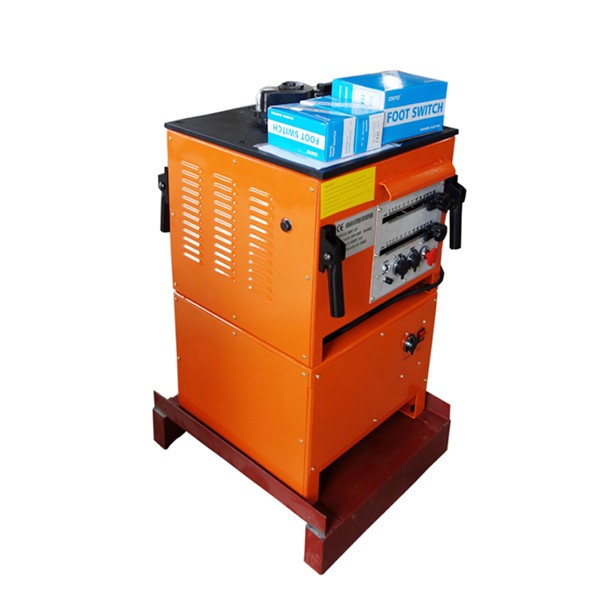

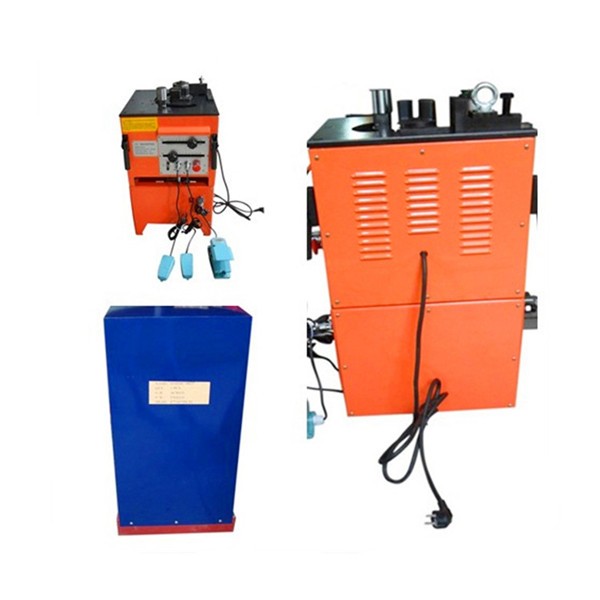

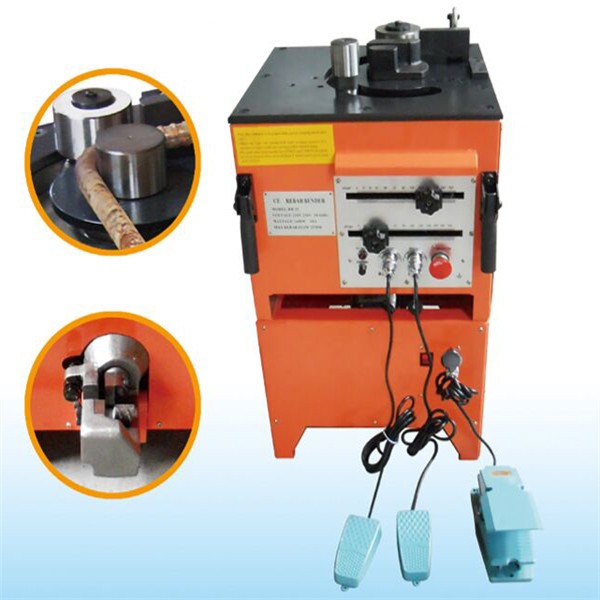

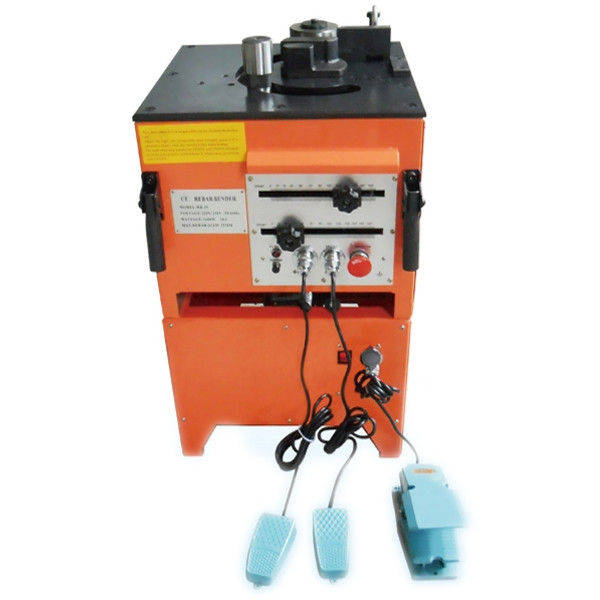

Images of RBC-25 Rebar Bending and Cutting Machine
