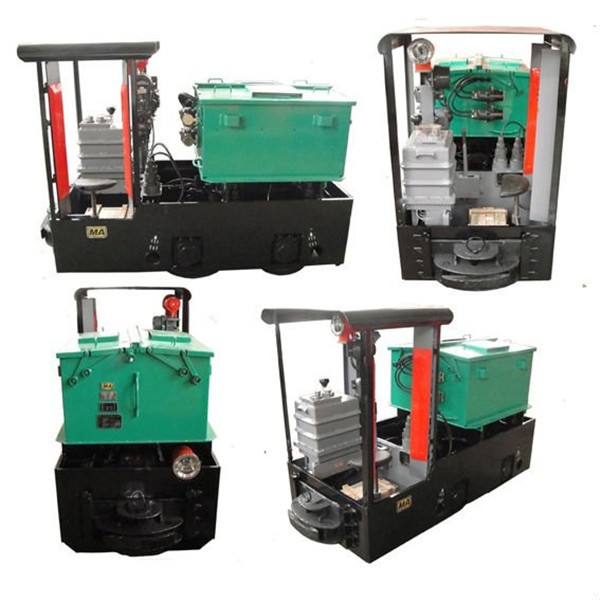

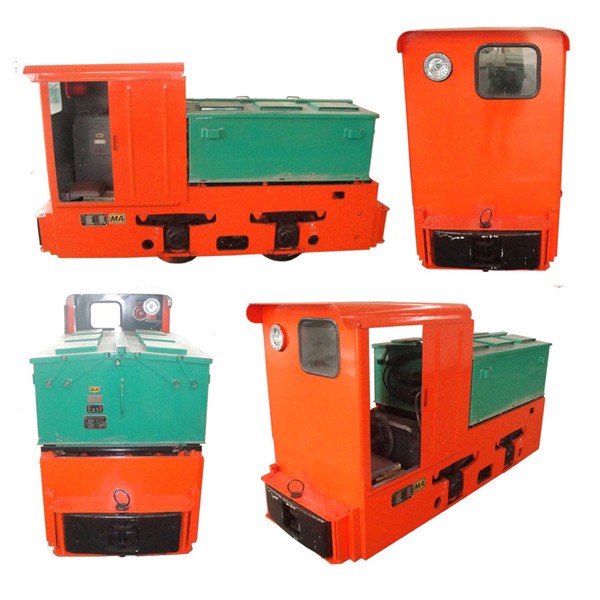

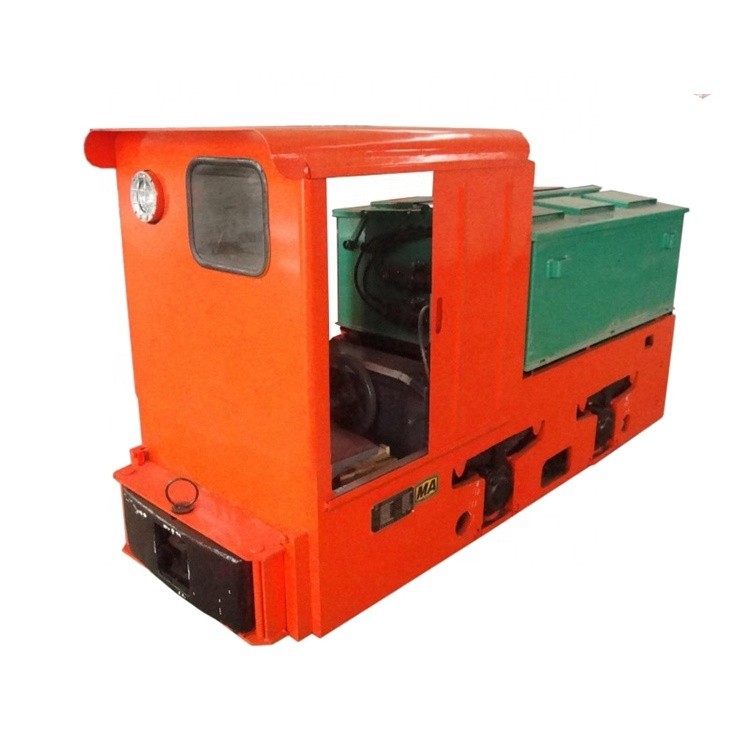

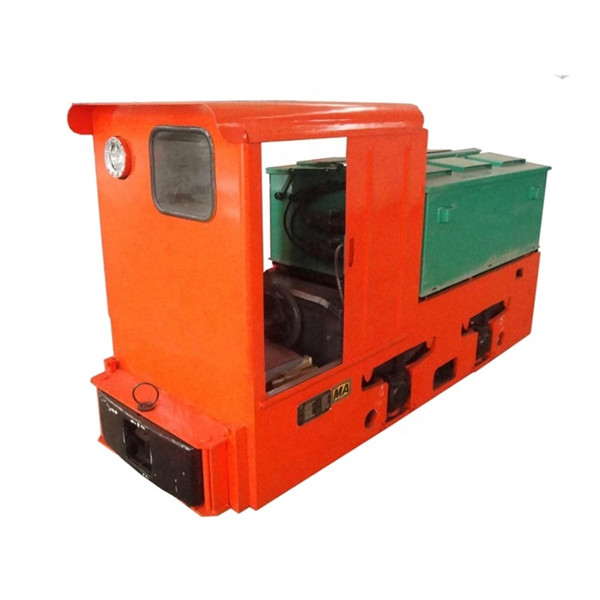

CTY2.5/6, 7, 9G Underground Gold Mine Safe Electric Battery Locomotive

Introduction of Electric Battery Locomotive
We have IGBT stepless speed regulating system, pure hydraulic drive system, AC variable-frequency governor.
Locomotives are designed to accommodate customer requirements for tunneling,mining and other operations.
Details:
1.Chassis
Constructed in welded steel and suspended by springs on grease bearing seats with tapered roller bearings.
2. Speed Control
In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.
3. Brakes
Mechanical drum brake to the coupler.
4. Sanders
Mechanical sanding system to the rails.
5. Battery
The battery housing is constructed in steel plating with an interior anti-acid covering. Each device has 24pcs series storage lead-acid batteries.
6. Buffers
The locomotive has two buffers with springs shock absorbers to achieve complete shock absorption against collisions.
Parameter of Electric Battery Locomotive

Model			CTY2.5/6, 7, 9G
Adhesive Weight			2.5 tons
Track Gauge			600, 762 or 900mm
Traction			2.55kN
Max. Traction			6.13kN
Speed			4.54km/h
Power Supply Device		Voltage	48V
		Capacity	330Ah
Power			3.5kW*1
Size	Length		2360mm
	Width		914, 1076 or 1214mm
	Height		1550mm
	Wheelbase		650mm
	Wheel Diameter		Φ460mm
Min. Turning Radius			5m
Electromechanical Controller			Resistance or IGBT
Brake Mode			Mechanical Brake
